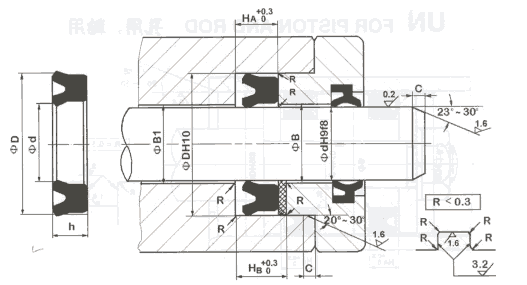

uhs\uns un4-25a un25b-50e un50f1-90.2 un95-290
| p 〈 5mpa | b=d-0.9 | d < 60 | c = 4 | d1=d-1 | h<7 ha=h+0.5 | ||
| p 5∽10mpa | b=d-0.7 | d 60∽180 | c = 5.5 | d1=d-1 | h = 7∽8 ha=h+0.8 | ||
| p 10∽20mpa | b=d-0.4 | d 120∽180 | c = 6.5 | d1=d-1 | h>8 ha=h+1.0 | ||
| p 20∽30mpa | b=d-0.2 | d 180∽250 | c = 7.5 | d1=d-2 | |||
| p 30∽40mpa | b=d-0.1 | d 250∽400 | c = 10 | d1=d-2 |
| p 〈 5mpa | b=d+0.9 | b=d+2.4 | d < 60 | c = 4 | h<7 ha=h+0.5 | ||
| p 5∽10mpa | b=d+0.7 | b=d+1.6 | d 60∽180 | c = 6.5 | h = 7∽8 ha=h+0.8 | ||
| p 10∽20mpa | b=d+0.4 | b=d+0.8 | d 180∽250 | c = 7.5 | h>8 ha=h+1.0 | ||
| p 20∽30mpa | b=d+0.2 | b=d+0.5 | d 250∽400 | c = 10 |
材料：聚氨脂pu
壓力：21mpa (210bar)
溫度：-35℃ ∽ 100℃
速度：0.03 ∽ 1.0m/s (軸用） 0.05 ∽ 0.5 m/s (孔用）
