型號規(guī)格：
接管 口徑 |
流量 通徑 mm |
CV值 |
壓力差（kgf/cm2） |
最大流 體溫度 |
線圈 配置 |
功率 |
線圈 等級 |

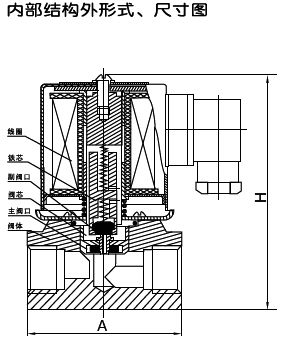

外形尺寸
長×寬×高 A×B×H |
重量 KG |
訂貨型號以下 表中電壓為 220CAC 50/60HZ |
||||||||
最小 壓力 |
最大工作壓力 |
|||||||||||||||||
空氣 瓦斯 |
水 熱水 液體 |
輕油 |
蒸氣 |
VA |
W |
|||||||||||||
AC220V |
DC24V |
|||||||||||||||||
AC |
DC |
AC |
DC |
AC |
DC |
AC/DC |
||||||||||||
| 1/8'' | 3 | 0.23 | 0 | 13 | 10 | 13 | 10 | 10 | 7 | 3 | 130 | D | 22 | 13 | F | 30×30×82 | 0.36 | ZCT1DF02V5A03 |
| 1/4'' | 3 | 0.23 | 0 | 13 | 10 | 13 | 10 | 10 | 7 | 3 | 130 | D | 22 | 13 | F | 30×30×82 | 0.36 | ZCT1DF02V5B03 |
| 4 | 0.6 | 0 | 7 | 7 | 7 | 7 | 5 | 5 | 3 | 130 | D | 22 | 13 | F | 50×30×82 | 0.8 | ZCT1DF02V5B04 | |
| 3/8'' | 4 | 0.6 | 0 | 7 | 7 | 7 | 7 | 5 | 5 | 3 | 130 | D | 22 | 13 | F | 50×30×82 | 0.8 | ZCT1DF02V5C04 |
| 6 | 0.9 | 0 | 6 | 6 | 6 | 6 | 6 | 6 | 5 | 155 | A | 19.8 | 12.5 | H | 50×30×82 | 0.7 | ZCT1AH02V5C06 | |
| 1/2'' | 6 | 0.9 | 0 | 6 | 6 | 6 | 6 | 6 | 6 | 5 | 155 | A | 19.8 | 12.5 | H | 50×30×82 | 0.7 | ZCT1AH02V5D06 |
| 10 | 1.5 | 0.1 | 10 | 10 | 10 | 10 | 7 | 7 | 5 | 155 | A | 19.8 | 22 | H | 70×38×110 | 1.2 | ZCT1AH02V5D10 | |
| 10 | 1.5 | 0 | 2.5 | 2.5 | 1.5 | 1.5 | 1 | 1 | 130 | D | 19.8 | 22 | F | 70×38×110 | 1.2 | ZCT1DF02V5D10 | ||
| 3/4'' | 15 | 4.5 | 0.1 | 10 | 10 | 10 | 10 | 7 | 7 | 5 | 155 | A | 19.8 | 22 | H | 80×40×115 | 1.3 | ZCT1AH02V5E15 |
| 15 | 4.5 | 0 | 1.5 | 1.5 | 1 | 1 | 1 | 1 | 130 | D | 19.8 | 22 | F | 80×40×115 | 1.3 | ZCT1DF02V5E15 | ||
| 1'' | 15 | 4.5 | 0.1 | 10 | 10 | 10 | 10 | 7 | 7 | 5 | 155 | A | 19.8 | 22 | H | 80×40×115 | 1.2 | ZCT1AH02V5G15 |
| 15 | 4.5 | 0 | 1.5 | 1.5 | 1 | 1 | 1 | 1 | 130 | D | 19.8 | 22 | F | 80×40×115 | 1.2 | ZCT1DF02V5G15 | ||
